40 kW DC Wallbox EV Charger – NECS-DCW-40-1-CE-4033 | Charge Plus Saudi Arabia

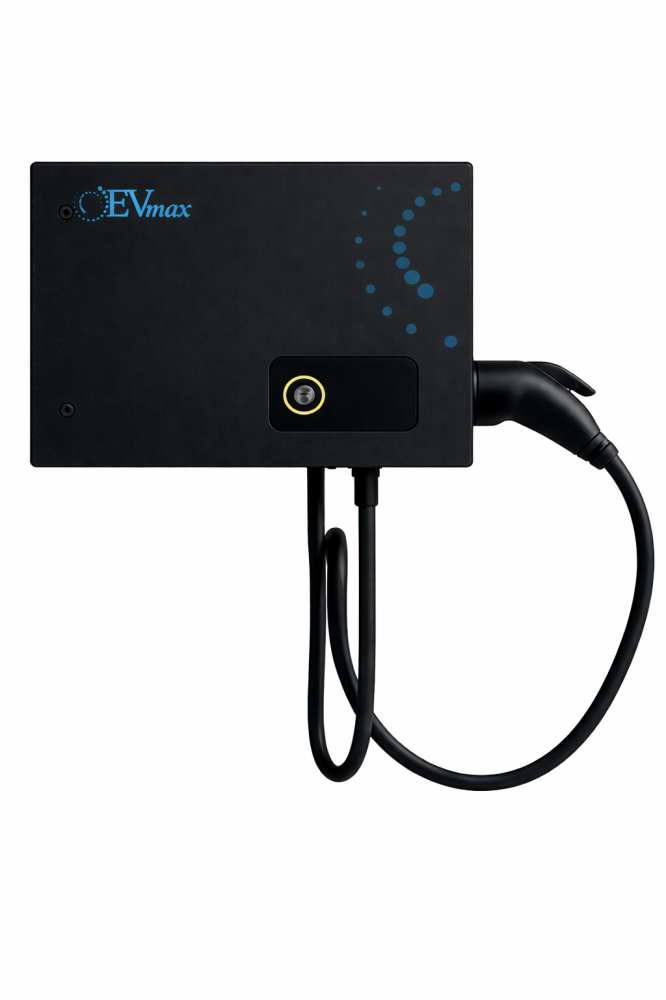

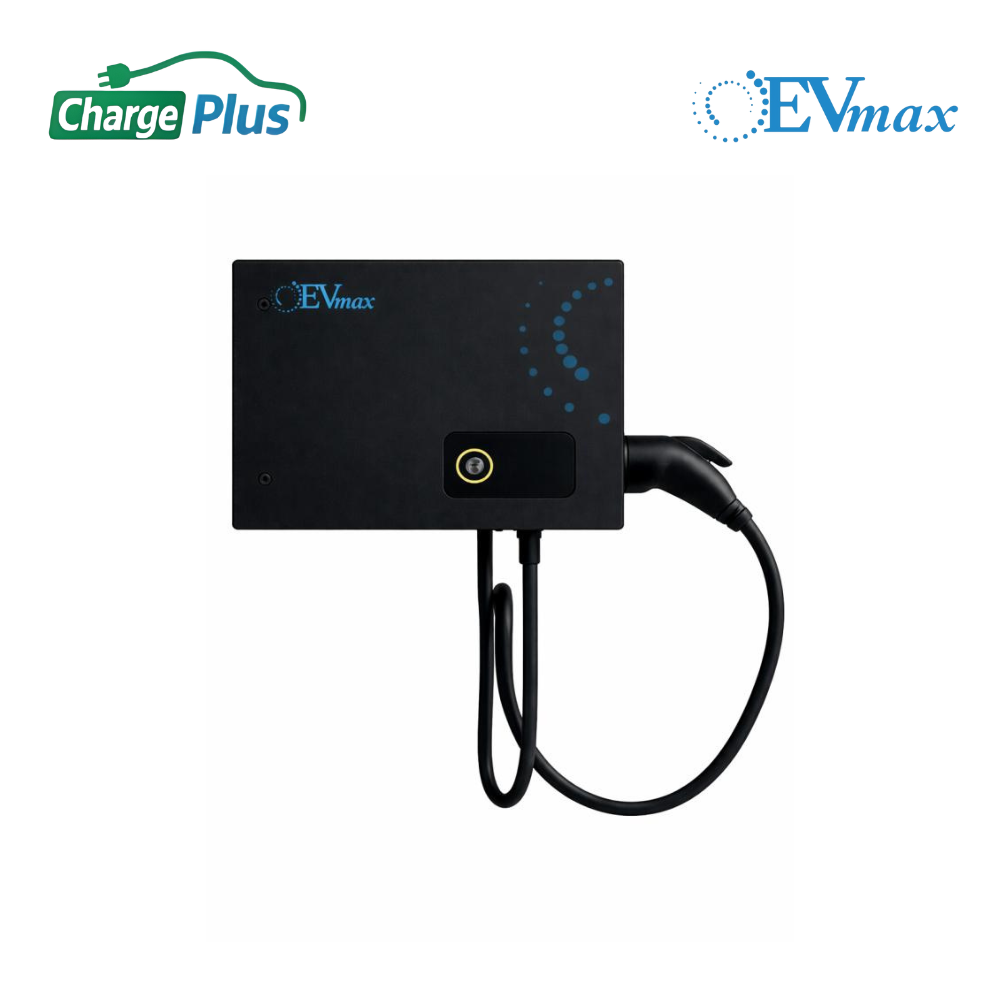

The NECS-DCW-40-1-CE-4033 is a 40 kW DC wall-mounted EV charger designed for reliable day‑to‑day operation in commercial and semi‑public environments.

According to the manufacturer datasheet, it operates from a three‑phase 400 VAC input supply (3P+N+PE) at 50/60 Hz with a maximum input current of 100 A. The charger delivers up to 40 kW DC output power with a maximum charging current of 100 A, enabling rapid charging sessions for most passenger EVs without requiring a large footprint. The unit features an IP54‑rated enclosure and natural‑cooling design, making it suitable for both indoor and outdoor installations under typical Middle East conditions.

It is specified to operate between −25 °C and +55 °C with relative humidity up to 95 % and installation altitude up to 2000 m.

The housing is manufactured from sheet‑metal with an acrylic front panel, with overall dimensions of approximately 100 × 86 × 45 cm and a net weight below 70 kg including the vehicle connector and 5 m output cable. Protection functions include over‑current protection, short‑circuit protection, leakage‑current protection and internal over‑temperature / leakage self‑detection. The residual current device trips at a leakage action value of ≤ 30 mA to enhance user safety.

Executive standards listed in the datasheet include IEC 61851‑1, IEC 61851‑21‑2 and IEC 62196‑2, with CE certification. For user interaction, the charger integrates flowing LED status lighting and a 4.3‑inch touch screen, providing clear indication of charging status and allowing simple configuration where required. Charging can be started via Plug & Play or RFID card, making the wallbox suitable for both open‑access and controlled‑access scenarios.

Communication with back‑office systems is handled using the OCPP 1.6 protocol over 4G as standard, with optional Wi‑Fi 2.4 GHz and Bluetooth interfaces. With its combination of 40 kW DC output, compact wall‑mount design and full OCPP connectivity, the NECS‑DCW wallbox is a strong choice for commercial buildings, hotels, dealerships, fleet depots and other locations that require dependable DC fast charging without the footprint of a large free‑standing charger.

Key Features (EN)

• 40 kW DC wall-mounted EV charger
•

• Input: three‑phase 400 VAC, 3P+N+PE, 50/60 Hz, max input current 100 A
•

• Output: up to 40 kW DC, max charging current 100 A
•

• Residual current protection with action value ≤ 30 mA
•

• Ingress protection rating IP54 – suitable for indoor and outdoor installation
•

• Natural cooling design for reduced maintenance and noise
•

• Operating temperature −25 °C to +55 °C; humidity up to 95 % RH; altitude ≤ 2000 m
•

• Sheet‑metal enclosure with acrylic front panel, approx. 100 × 86 × 45 cm
•

• Net weight ≤ 70 kg including 5 m vehicle connector cable
•

• 4.3‑inch touch screen plus LED flow light for clear status indication
•

• Charge start modes: Plug & Play and RFID card
•

• Communication: OCPP 1.6 via 4G (standard), Wi‑Fi 2.4G and Bluetooth optional
•

• Complies with IEC 61851‑1, IEC 61851‑21‑2 and IEC 62196‑2; CE certified
•

• Ideal for commercial parking, workplaces, fleets and semi‑public charging sites
•


Why Choose This Charger? (EN)

• Delivers genuine DC fast charging (40 kW) in a compact wall-mounted format.
•

• Compatible with common three‑phase 400 V AC supplies in commercial buildings.
•

• Natural‑cooled IP54 enclosure reduces moving parts and maintenance requirements.
•

• Supports OCPP 1.6 for integration with charge point management systems.
•

• User‑friendly operation via RFID or plug‑and‑charge with clear LED and touch‑screen interface.
•

• Suitable for Saudi climate conditions thanks to wide operating temperature and humidity range.
